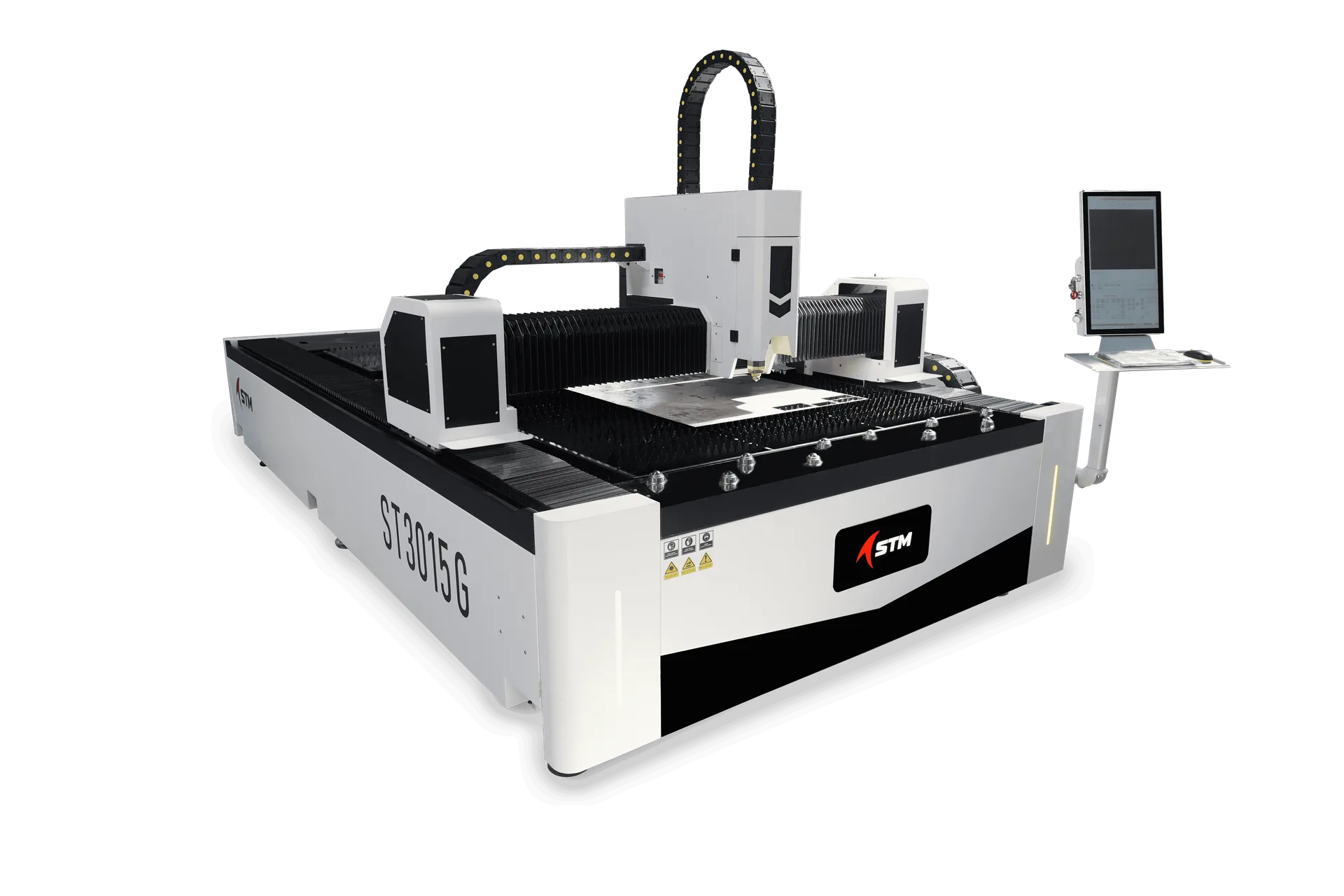

STM G-series open type fiber laser cutting machines are engineered for efficiency and reliable sheet metal processing. With power options up to 6kW, with maximum speed of 80m/min. Perfectly Suitable for fabrication units seeking efficiency, accuracy, and easy material handling, all in a compact, cost-effective machine.
Description/Model | Unit | ST3015G | ST4015G | ST4020G | ST6015G | ST6020G | ST6025G | ST6520G | ST6525G |
Laser Power | kW | 1.5 - 3 | |||||||
Laser Source |
| MAX / Raycus | |||||||
Laser Head |
| Bochu / Raytools | |||||||
Working Area (LxW) | mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x1500 | 6000x2000 | 6000x2500 | 6500x2000 | 6500x2500 |
X/Y-axis Positioning Accuracy | mm | ±0.05 | |||||||
X/Y-axis Repositioning Accuracy | mm | ±0.02 | |||||||
Max Acceleration | G | 0.8 | |||||||
Power Supply | V | Three-phase, 380 | |||||||
Water Cooling |
| Hexa Cool | |||||||
Control System |
| FSCUT2000E | |||||||
Our experts are ready to support you through design setup, material selection, and machine calibration
