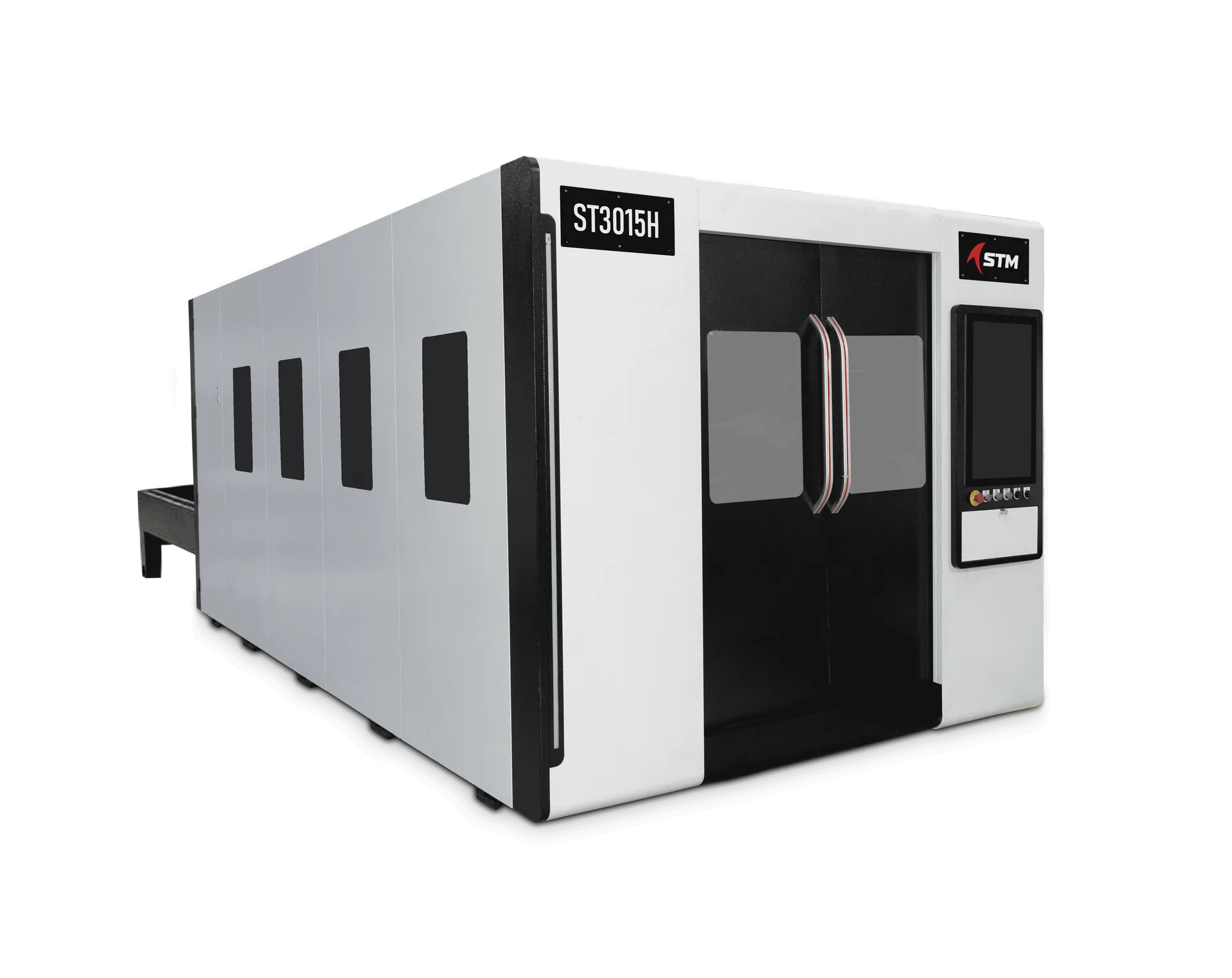

STM H-Series Enclosed double pallet fiber laser cutting machines combine high-speed production with maximum safety and dust control. The full enclosure contains sparks, fumes, and reflections, while the dual exchange tables keep the workflow continuous cutting on one pallet while the operator handles the other. With power options up to 30kW with maximum cutting speed of 130-180m/min, this model ensures clean, fast, and precise cutting for demanding industrial environments.
Description/Model | Unit | ST3015H | ST4015H | ST4020H | ST6015H | ST6020H | ST6025H | ST6520H | ST6525H |
Laser Power | kW | 1.5 - 30kW | |||||||
Laser Source |
| MAX / Raycus | |||||||
Laser Head |
| Bochu / Raytools | |||||||
Working Area (LxW) | mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x1500 | 6000x2000 | 6000x2500 | 6500x2000 | 6500x2500 |
X/Y-axis Positioning Accuracy | mm | ±0.05 | |||||||
X/Y-axis Repositioning Accuracy | mm | ±0.02 | |||||||
Max Acceleration | G | 0.8G(1.5kW ~ 3kW), 1.2G(6kW ~ 12kW), 1.5G(20~30kW) | |||||||
Power Supply | V | Three-phase, 380 | |||||||
Water Cooling |
| Hexa cool | |||||||
Control System |
| FSCUT2000E(1.5~3kW ), FSCUT4000E(6kW), FSCUT6000E(12kW), FSCUT8000E(20~30kW) | |||||||
Our experts are ready to support you through design setup, material selection, and machine calibration
