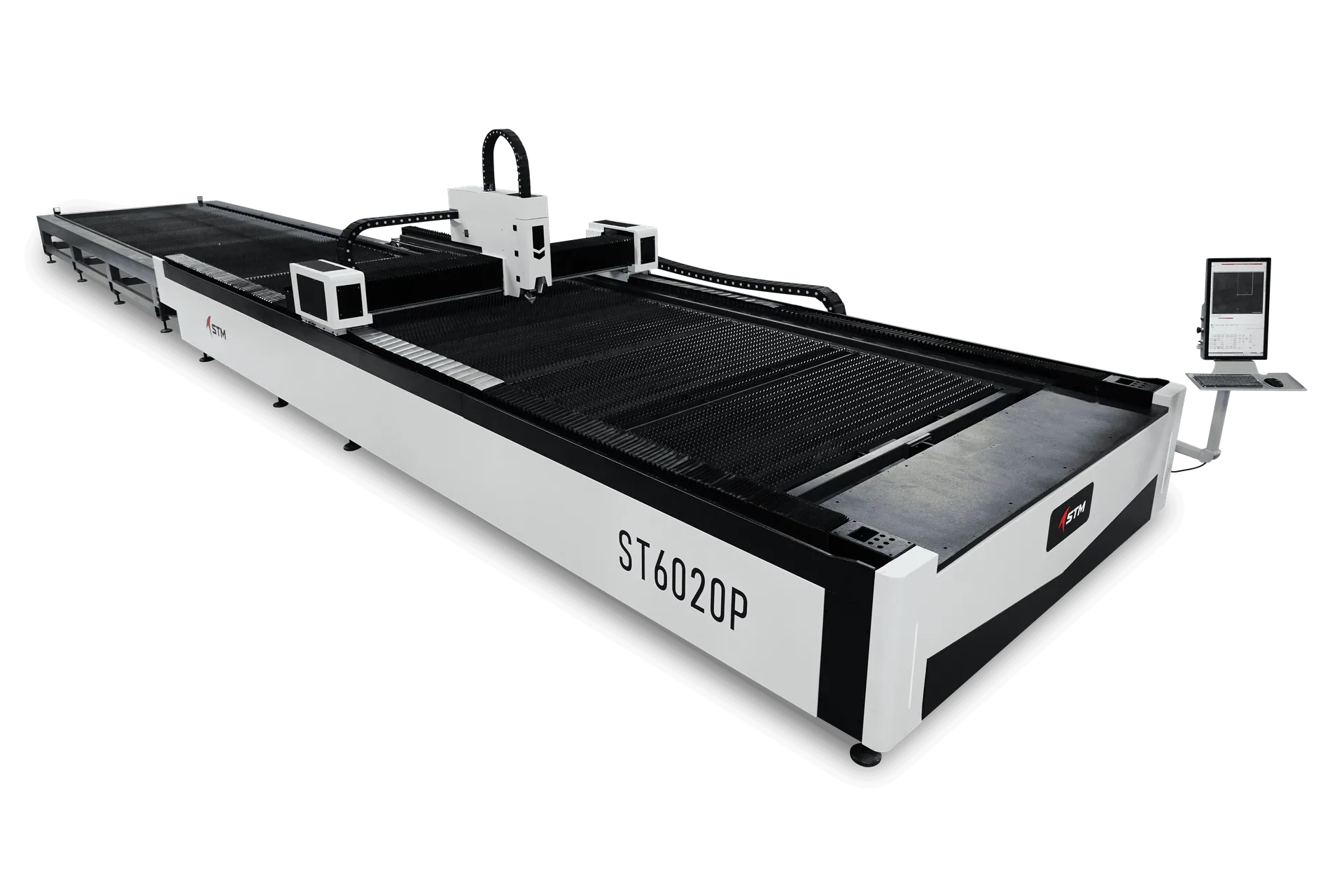

STM P-Series Open-type double pallet fiber laser cutting machines are designed for high productivity and efficient sheet handling. With dual exchange pallets, the machine cuts on one pallet while the operator loads/unloads the other minimizing idle time. Available in power options up to 30kW with maximum cutting speed of 80m/min, it delivers fast, accurate cutting with improved workflow and smooth operation in busy fabrication environments.
Description/Model | Unit | ST3015P | ST4015P | ST4020P | ST6015P | ST6020P | ST6025P | ST6520P | ST6525P |
Laser Power | kW | 1.5 - 30kW | |||||||
Laser Source |
| MAX / Raycus | |||||||
Laser Head |
| Bochu / Raytools | |||||||
Working Area (LxW) | mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x1500 | 6000x2000 | 6000x2500 | 6500x2000 | 6500x2500 |
X/Y-axis Positioning Accuracy | mm | ±0.05 | |||||||
X/Y-axis Repositioning Accuracy | mm | ±0.02 | |||||||
Max Acceleration | G | 0.8G(1.5kW ~ 3kW), 1.2G(6kW ~ 12kW), 1.5G(20~30kW) | |||||||
Power Supply | V | Three-phase, 380 | |||||||
Water Cooling |
| Hexa cool | |||||||
Control System |
| FSCUT2000E(1.5~3kW), FSCUT4000E(6kW), FSCUT6000E(12kW), FSCUT8000E(20~30kW) | |||||||
