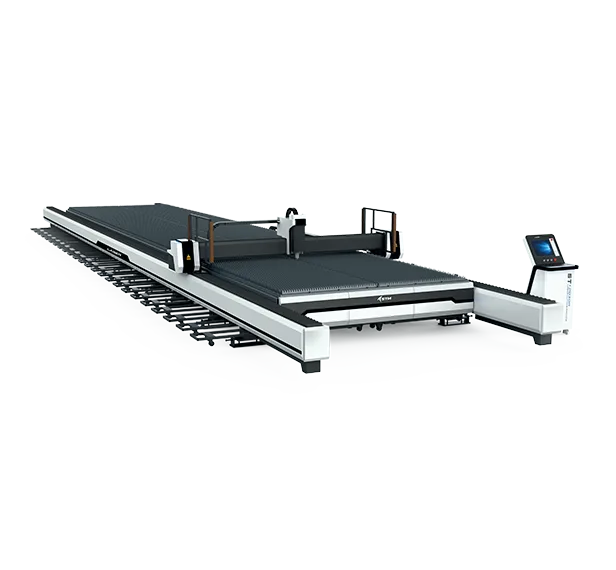

STM R-series Ultra-large fiber laser cutting machines are engineered for maximum sheet handling capacity and heavy-duty industrial applications. With extra-long bed sizes and power options up to 30kW with maximum cutting speed of 120-150m/min, they enable cutting of very large components in a single setup boosting accuracy, reducing handling time, and supporting high-volume production with exceptional stability and performance.
Description/Model | Unit | ST6030R | ST10030R | ST12040R | ST18040R | ST24040R | ST30040R |
Laser Power | kW | 6 - 30 | |||||
Laser Source |
| MAX / Raycus | |||||
Laser Head |
| Bochu / Raytools | |||||
Working Area (LxW) | mm | 6000x3000 | 10000x3000 | 12000x4000 | 18000x4000 | 24000x4000 | 30000x4000 |
X/Y-axis Positioning Accuracy | mm | ±0.1 | |||||
X/Y-axis Repositioning Accuracy | mm | ±0.05 | |||||
Max Acceleration | G | 1.2 | |||||
Power Supply | V | Three-phase, 380 | |||||
Water Cooling |
| Hexa cool | |||||
Control System |
| FSCUT4000E(6kW), FSCUT6000E(12kW), FSCUT8000E(20~30kW) | |||||
Our experts are ready to support you through design setup, material selection, and machine calibration
